Refinery and petrochemical plant, and wireless laser infrared video surveillance system in the oil and gas well area

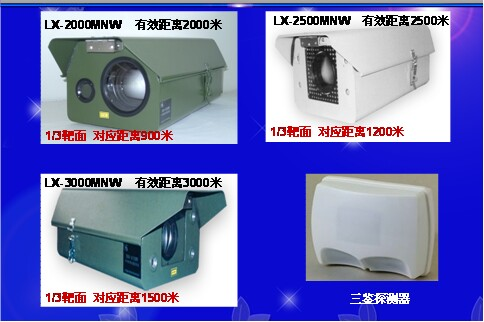

LX laser infrared night vision system, which monitors the range of 3 kilometers. The image quality of analogue machine: the monitoring target image should be large than 1/3 of the target surface, and the image resolution should reach D1 format; the image quality of high-definition machine: 5 mega-pixel, 2 mega-pixel, 1.3 mega-pixel. Single-point network bandwidth of the wireless image transmission system should be not less than 2MB without any mosaic;

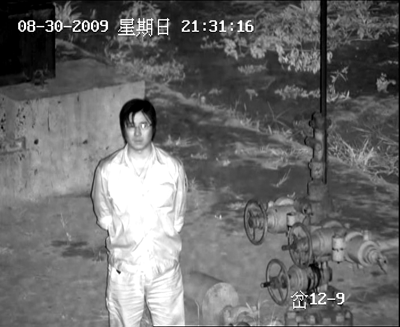

Night vision video effects in Second Oil Recovery Plant Chahe Well Area

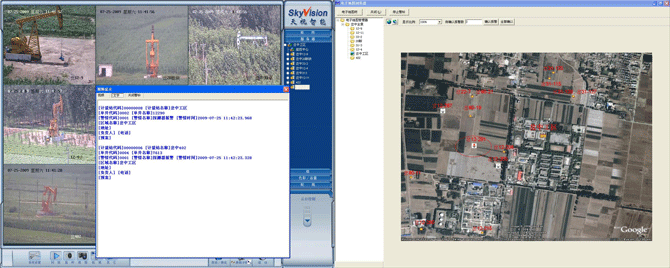

Video warning linkage in oil and gas well area

Warning linkage function
• Preset the position of warning linkage camera/manually retrieve the preset position of camera
• Execute cruise of warning linkage camera/manual trigger the cruise of camera
• Execute track of warning linkage camera/manually trigger the track of camera
• Mark single well position on the vector-map, double click single well button to call the camera image of the metering station of the single well, and switch to the single well position for monitoring by automatic adjustment of preset position.
• Support display of electronic maps of several levels, mark and operate virtual monitoring points on the electronic map, namely to mark the monitoring target on certain preset point of the monitor head on the electronic map, and click the virtual monitoring point of the monitoring target to automatically adjust the corresponding monitor head to the preset point of the target
• Pause of warning linkage

• Character prompt for warning information (for a certain warning point), and pop-out of warning picture

Night vision video effect of natural gas refueling station:

Explosion-proof analogue camera

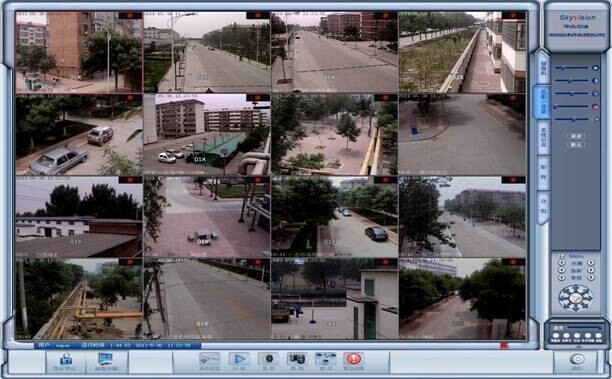

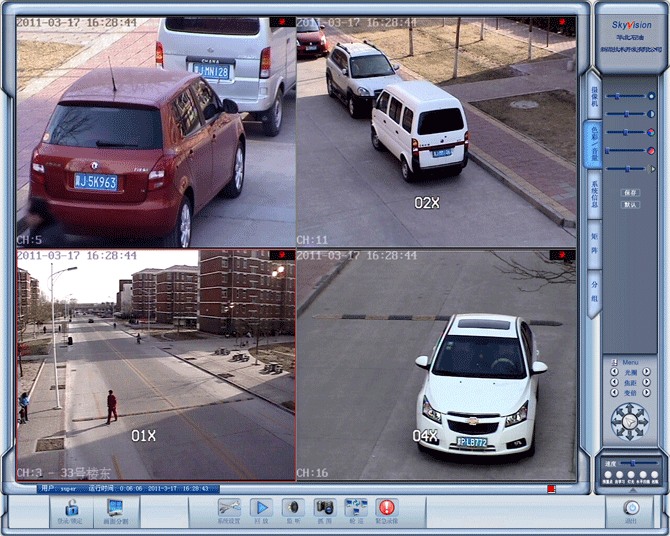

Integration of ten video monitoring systems (in the day):

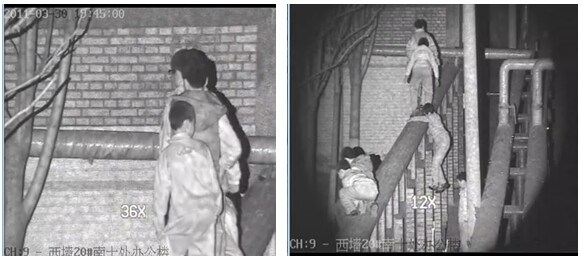

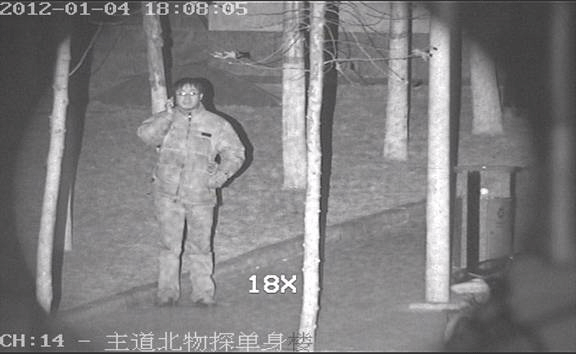

Video monitoring system in the community (night vision)
Adopt LQ-V300 smart laser camera, whose night vision distance can reach 100-200 meters, and its capturing effects are in compliance with the police's evidence collecting requirements, so that it is applicable to use in places near the community. It also has smart self-learning function, and 4 scanning curves can be set to scan any straight line, curve or surface. It can rotate by 306°, and in case of warning, the platform software can control the camera to make fine scanning by the preset track.

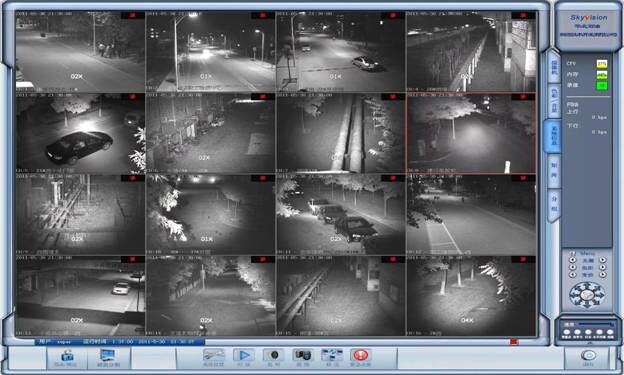

综合十处视频监控系统夜间报警联动图像
